Picture of the week: cutaway Subaru FF-1 1300G Super Touring
Posted in picture of the week

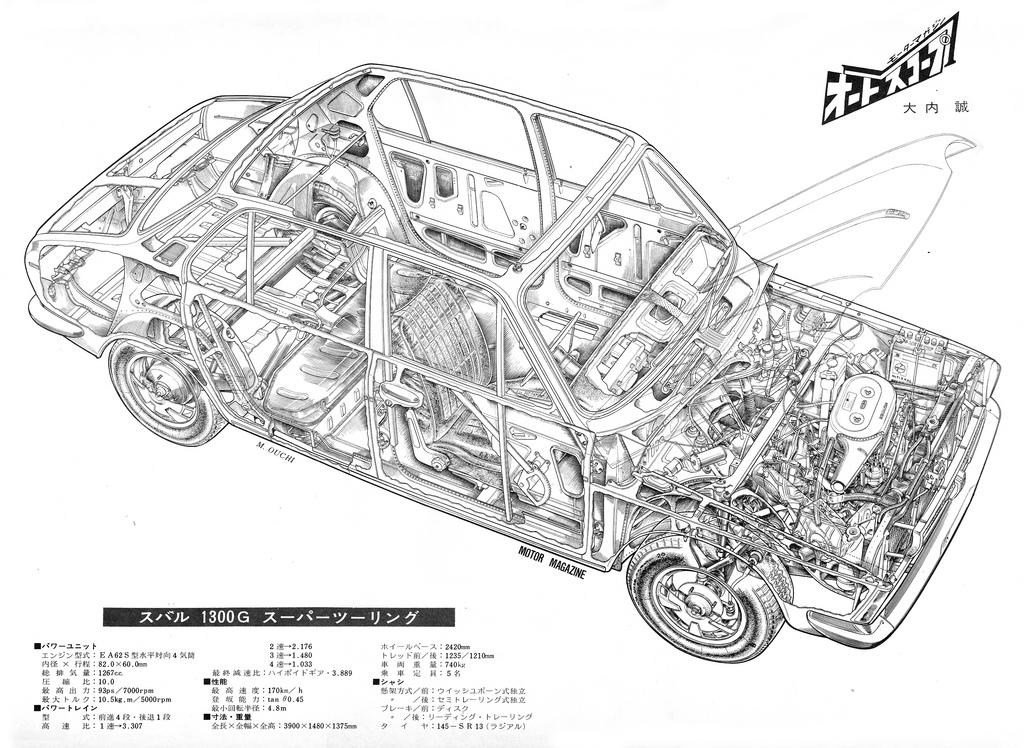

I love cutaway drawings in general and this drawing by M. Ouchi of the Subaru FF-1 1300G Super Touring is one of the most detailed cutaway drawings I’ve seen so far!
You can see clearly how fast forward thinking the FF-1 was: first front wheel drive Subaru, first four cylinder boxer engined Subaru and front and rear independent suspension with torsion bars!
Found at: Vetatur Fumare@Flickr
